Wszystkie strony z kategorii Łańcuchy transportowe ciężkie
Treść strony

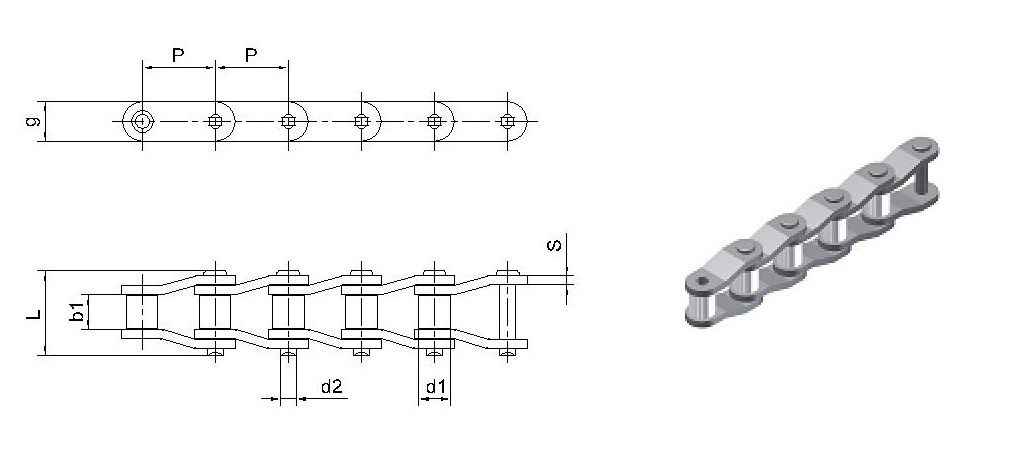

| Nr | P mm | b1 mm MIN | d2 mm MAX | d1 mm MAX | L mm | g mm | S mm | FB kN |
| ST59 | 59,50 | 28,00 | 9,00 | 21,00 | 62,00 | 30,00 | 5,0 | 55 |
| ST63 | 63,00 | 30,00 | 10,00 | 21,00 | 64,00 | 30,00 | 5,0 | 65 |
| ST65 | 65,50 | 33,00 | 12,00 | 25,00 | 72,00 | 30,00 | 6,0 | 78 |
| ST78,1 | 78,10 | 38,10 | 16,45 | 31,75 | 93,50 | 44,50 | 9,7 | 100 |
| ST87 | 87,00 | 48,00 | 17,00 | 35,00 | 88,00 | 45,00 | 6,0 | 90 |
| ST100 | 100,00 | 31,00 | 12,00 | 23,00 | 65,00 | 35,00 | 5,0 | 73 |
| ST100A | 100,00 | 29,00 | 13,00 | 27,00 | 68,00 | 35,00 | 6,0 | 96 |
| ST100B | 100,00 | 41,00 | 15,00 | 30,00 | 82,00 | 40,00 | 6,0 | 127 |

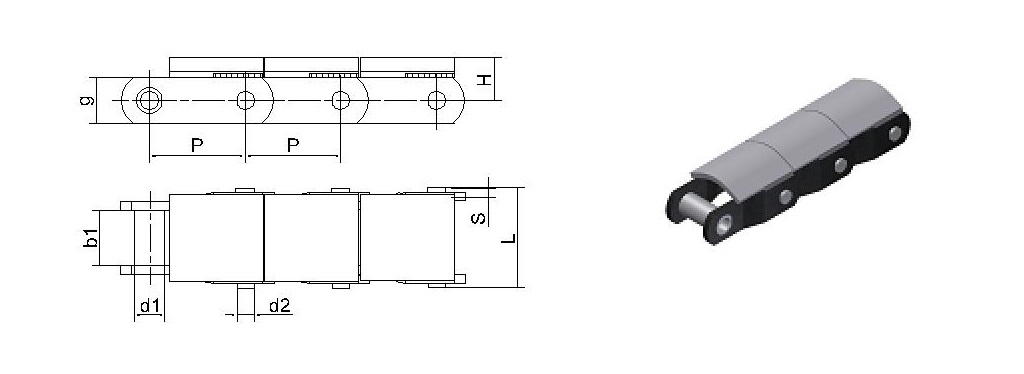

| Nr | P mm | b1 mm MIN | d2 mm MAX | d1 mm MAX | L mm | g mm | H mm | S mm | FB kN |
| WR78U | 66,27 | 38,60 | 12,63 | 21,34 | 69,30 | 31,75 | 30,20 | 6,0 | 127 |
