Wszystkie strony z kategorii Łańcuchy transportowe ciężkie
Treść strony

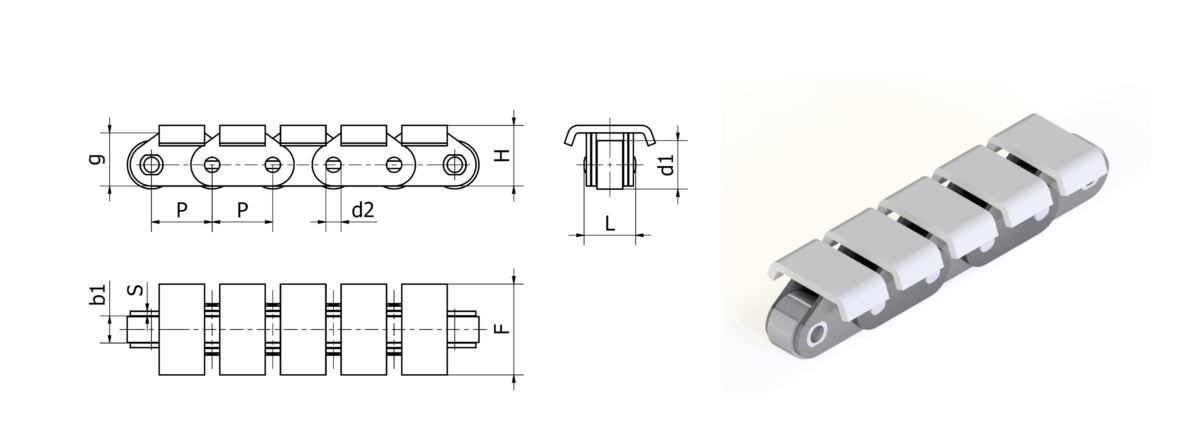

| Nr | P mm | b1 mm | d2 mm | d1 mm | L mm | g mm | S mm | H mm | F mm | FB kN |
| P40F3 | 40,00 | 18,00 | 10,00 | 32,00 | 36,10 | 35,00 | 3,0 | 43,00 | 60,00 | 40 |
| 352 | 50,00 | 15,00 | 10,00 | 31,00 | 36,00 | 30,00 | 4,0 | 34,00 | 65,00 | 45 |
| P63F9 | 63,00 | 25,00 | 14,00 | 48,00 | 52,00 | 45,00 | 5,0 | 56,50 | 130,00 | 63 |
| 353 | 75,00 | 15,00 | 10,00 | 31,00 | 36,00 | 30,00 | 4,0 | 34,00 | 65,00 | 45 |
| F76,2F19 | 76,20 | 27,50 | 11,10 | 38,10 | 59,10 | 35,00 | 6,4 | 50,05 | 63,50 | 150 |
| 354 | 100,00 | 15,00 | 10,00 | 31,00 | 36,00 | 30,00 | 4,0 | 34,00 | 65,00 | 45 |

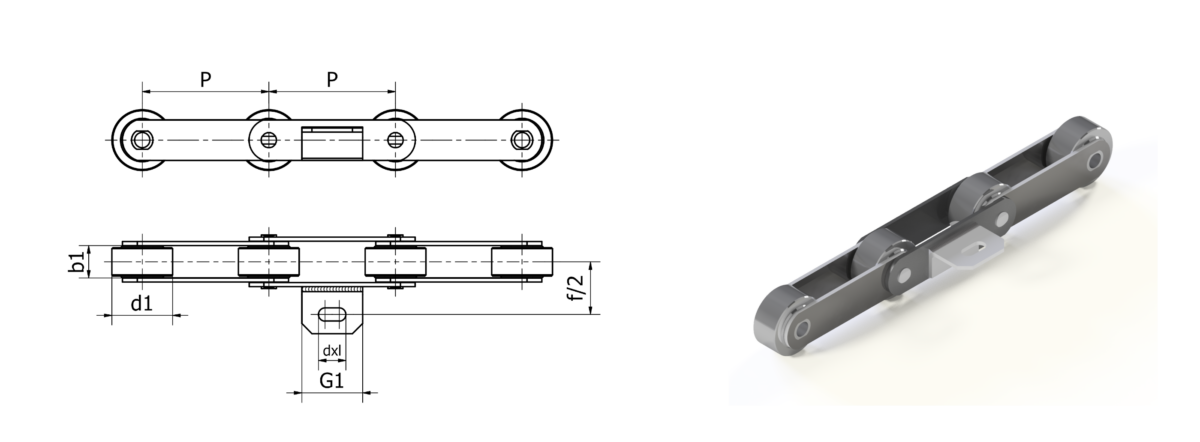

| Nr | P mm | h mm | H mm | G1 mm |
