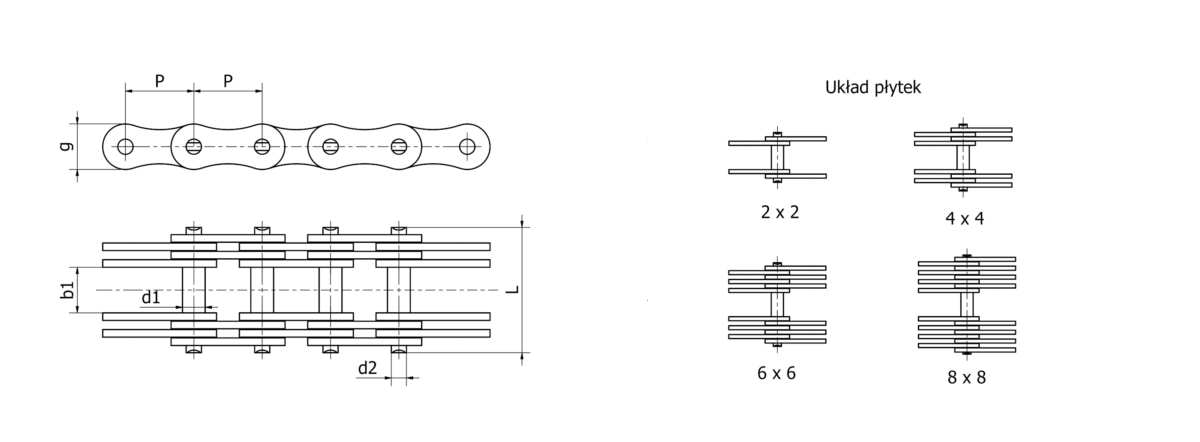

DIN
ISO		P
mm		b1
mm
MIN		Układ
płytek		d2
mm
MAX		d1
mm
MAX		L
mm		g
mm		S
mm		FB
kN
DG1515,0012,002x24,005,0025,0012,002,005,00
DG2020,0015,002x26,008,0028,0015,002,0012,50
DG2525,0018,002x28,0010,0036,0018,003,0025,00
DG3030,0020,004x49,0011,0051,0020,003,0040,00
DG3535,0022,004x410,0012,0053,0026,003,0060,00
DG4040,0025,004x412,0014,0059,0032,003,0080,00
DG4545,0030,004x414,0017,0063,0035,003,00100,00
DG5050,0035,004x418,0022,0090,0038,004,50150,00
DG5555,0040,004x421,0024,00108,0040,006,00200,00
DG6060,0045,004x423,0026,00114,0045,006,00250
DG7070,0050,006x628,0032,00148,0055,006,00375
DG8080,0060,006x632,0036,00159,0060,006,00500
DG9090,0070,006x636,0040,00184,0070,007,00750
DG100100,0080,008x840,0045,00224,0080,007,001000
DG110110,0090,008x845,0050,00236,0090,007,001250
DG120120,00100,008x850,0055,00262,00100,008,001500
