64B
Dane podstawowe

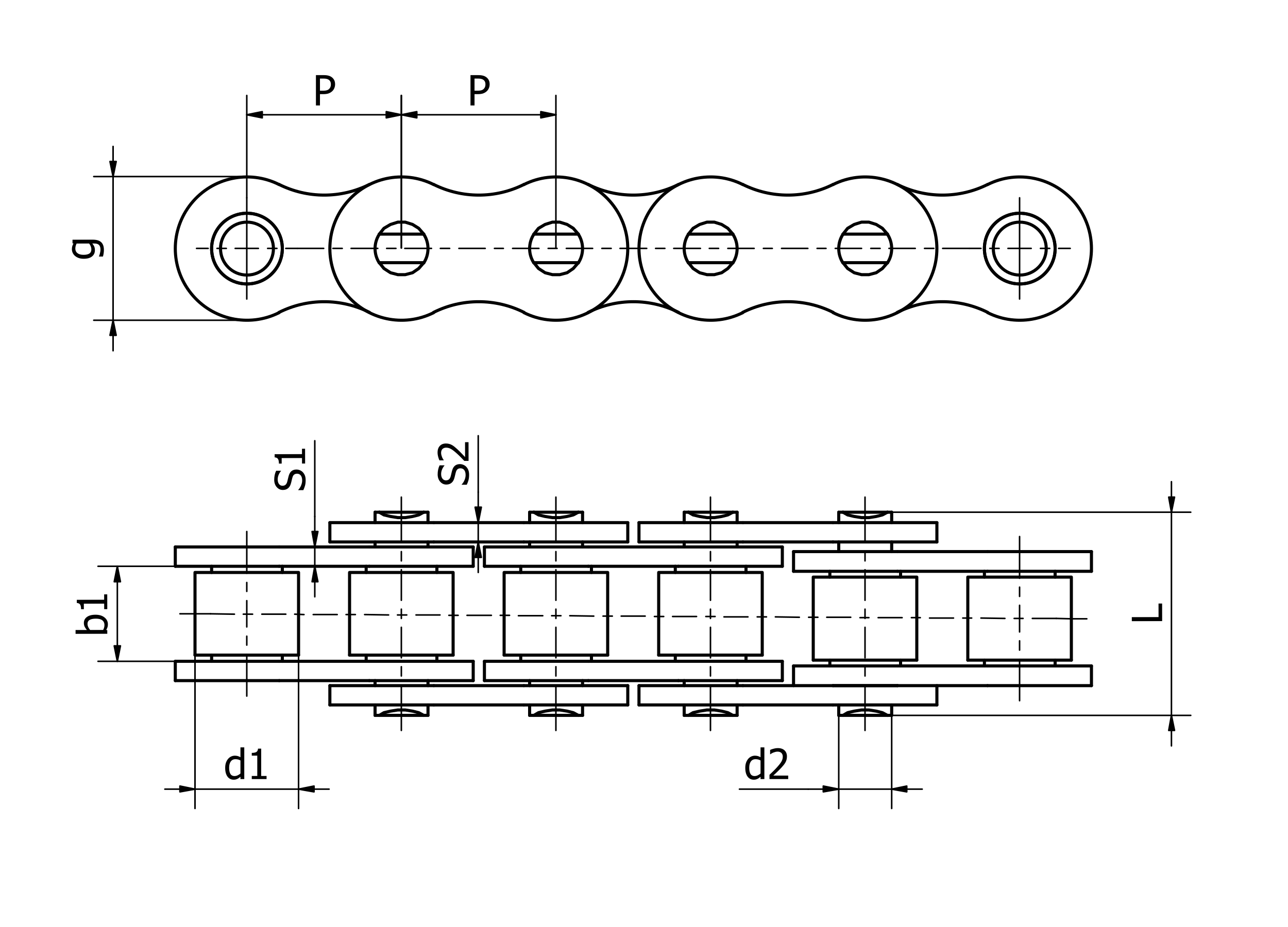

| DIN ISO | 64B |
|---|---|
| P mm | 101,6 |
| b1 mm min | 60,96 |
| d2 mm max | 39,40 |
| d1 mm max | 63,50 |
| L mm R1 | 130,00 |

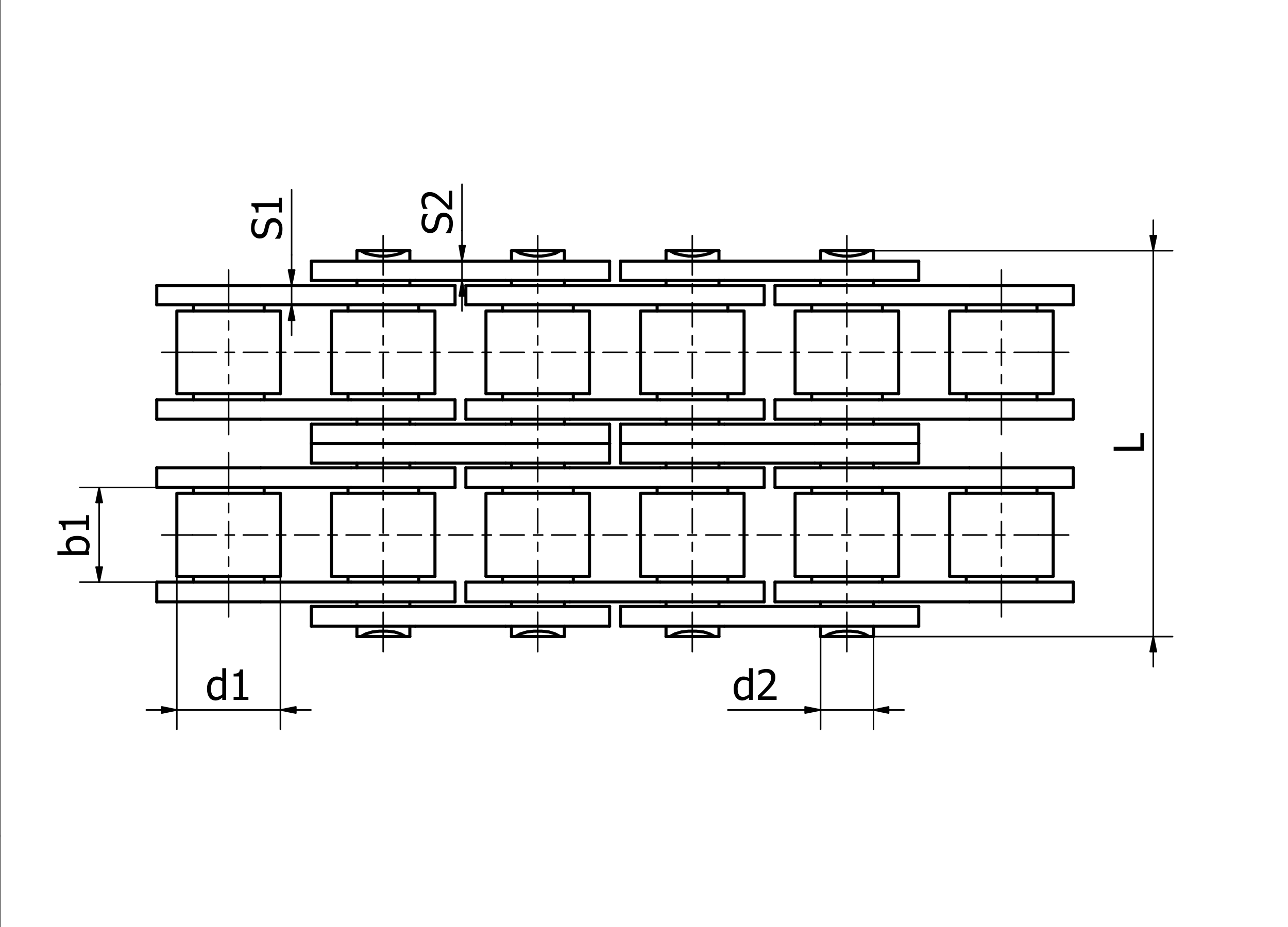

| L mm R2 | 249,00 |

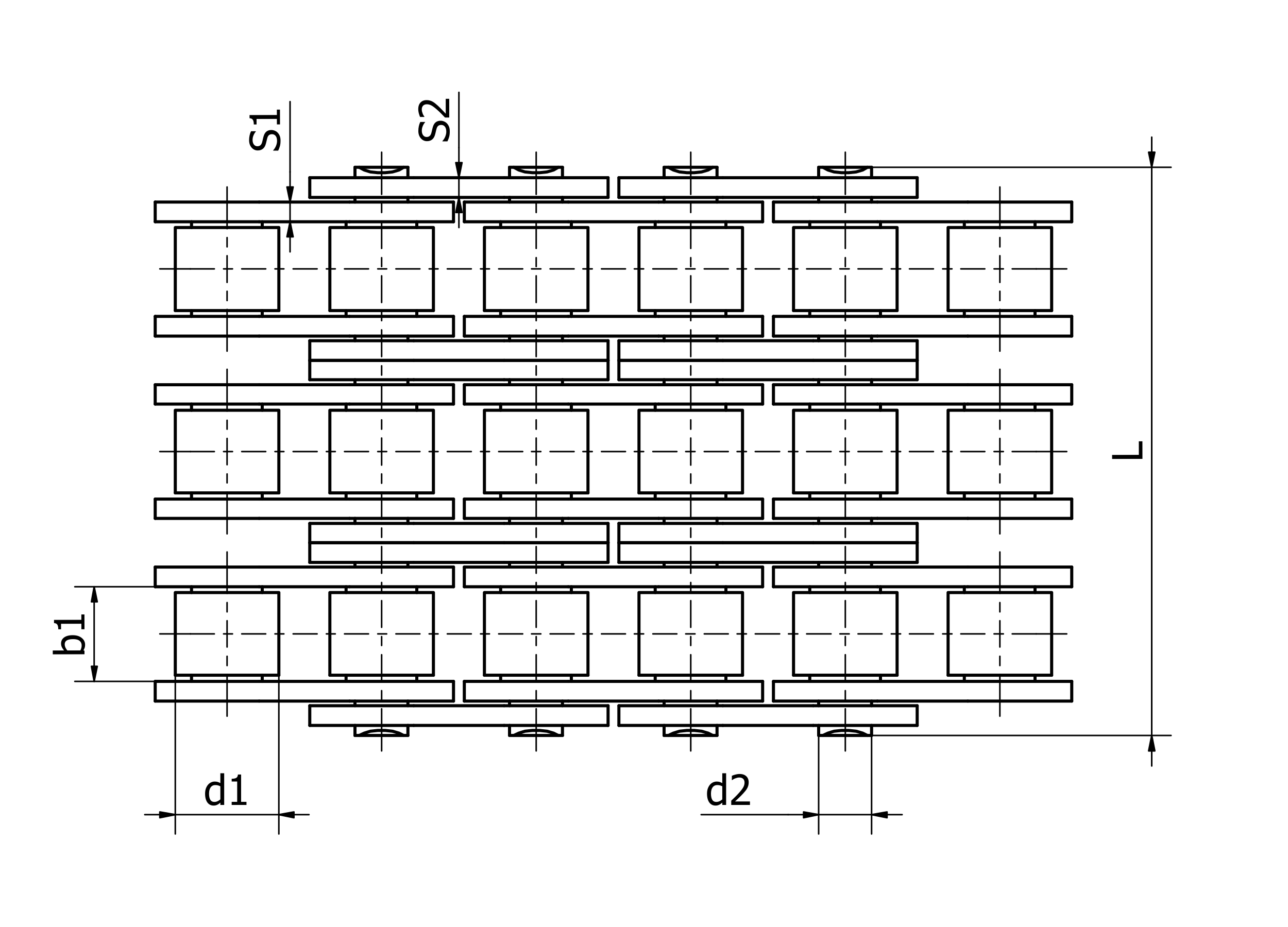

| L mm R3 | 369,00 |
| g mm | 90,10 |
| S1 mm | 15,00 |
| S2 mm | 13,00 |
| FB kN R1 | 1100,00 |
| FB kN R2 | 2000,00 |
| FB kN R3 | 3000,00 |
| Waga R1 | 46,00 |
| Waga R2 | 91,00 |
| Waga R3 | 136,00 |
