72B
Dane podstawowe

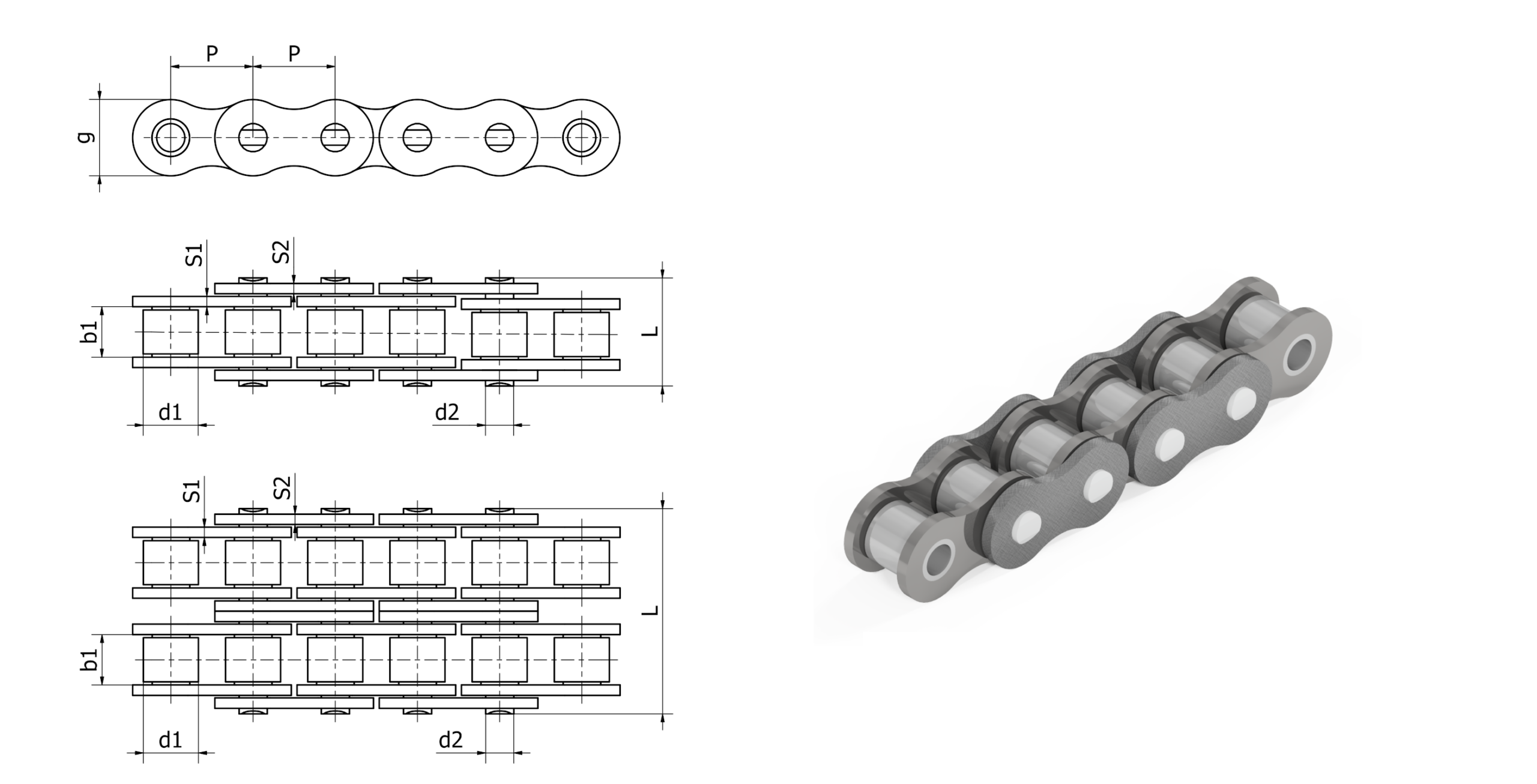

| DIN ISO | 72B |
|---|---|
| P mm | 114,30 |
| b1 mm min | 68,58 |
| d2 mm max | 44,50 |
| d1 mm max | 72,39 |
| L mm R1 | 147,00 |
| L mm R2 | 283,00 |
| L mm R3 | 420,00 |
| g mm | 103,60 |
| S1 mm | 17,00 |
| S2 mm | 15,00 |
| FB kN R1 | 1400,00 |
| FB kN R2 | 2500,00 |
| FB kN R3 | 3750,00 |
| Waga R1 | 60,80 |
| Waga R2 | 120,40 |
| Waga R3 | 180,00 |
