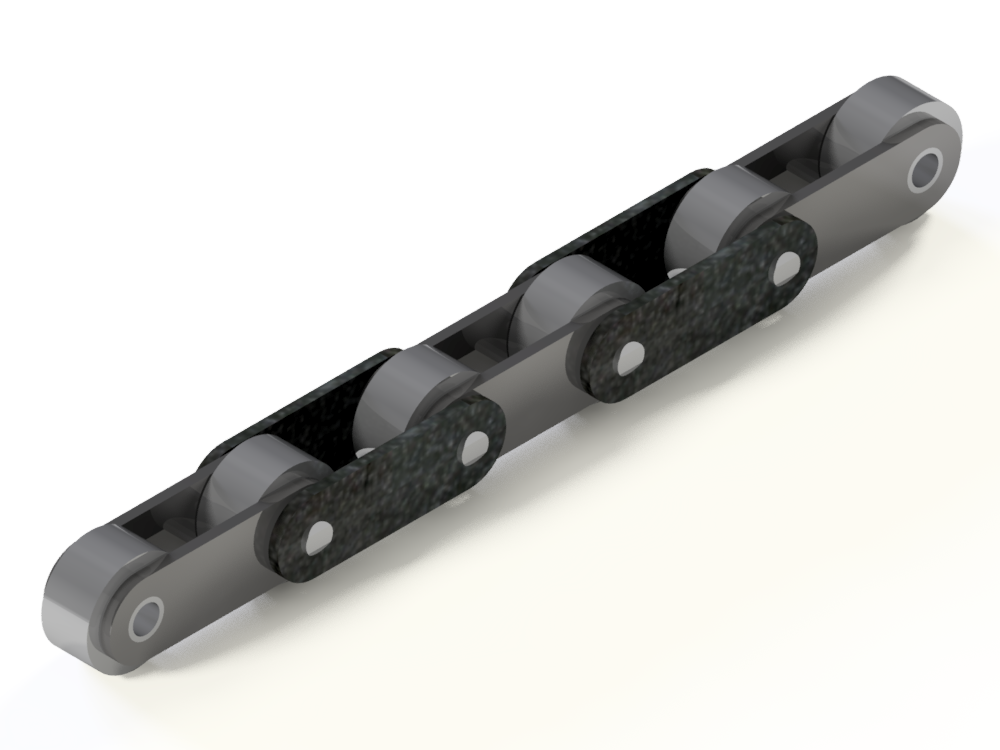

C 2102
Dane podstawowe

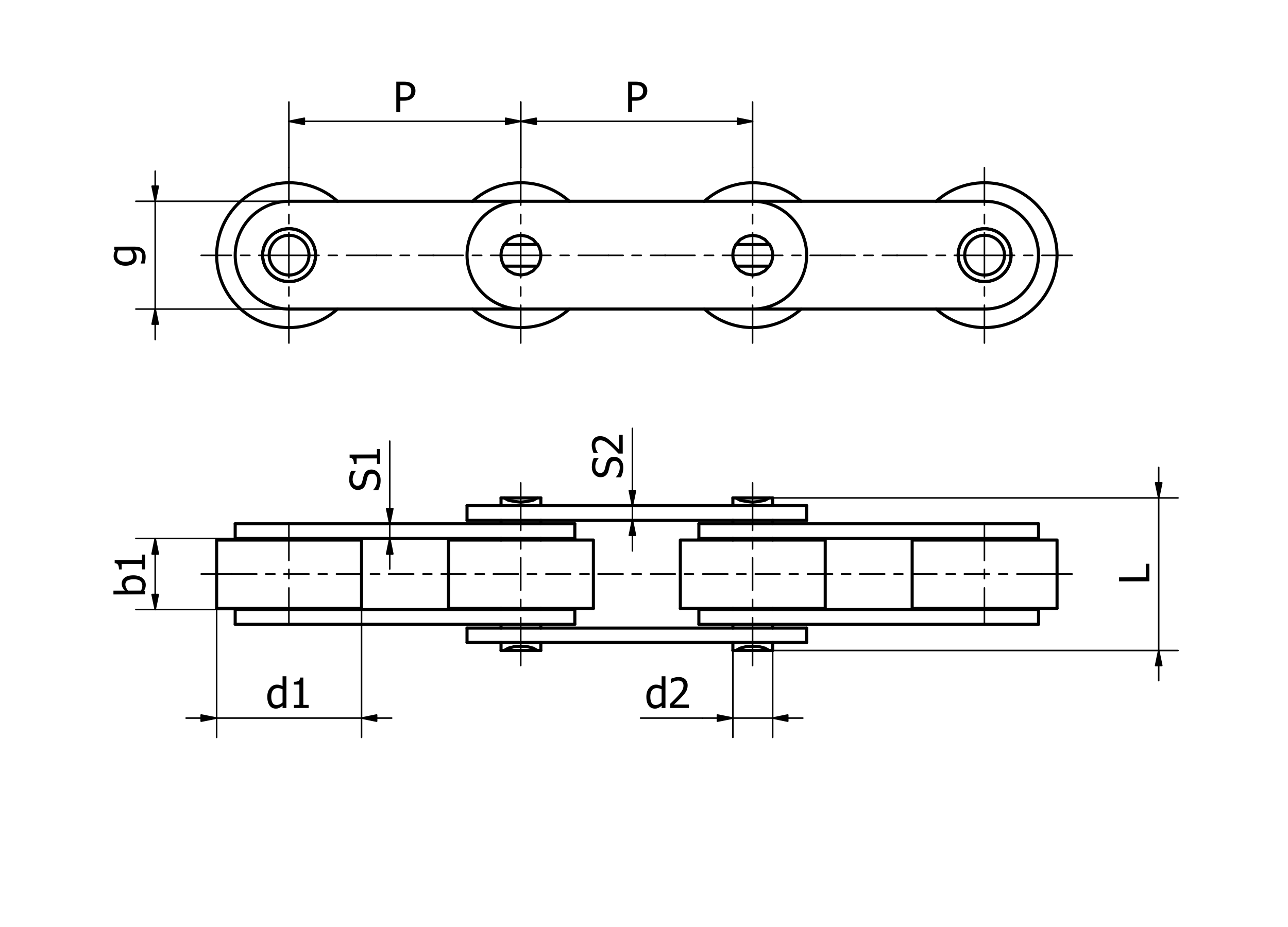

| P mm | 63,50 |
|---|---|
| b1 mm min | 18,90 |
| d2 mm max | 9,54 |
| d1 mm max | 39,67 |
| L mm | 41,10 |
| g mm | 30,00 |
| S1 mm | 4,00 |
| S2 mm | 4,00 |
| FB kN | 88,70 |
| Waga | 4,83 |
| P mm | 63,50 |
|---|---|
| b1 mm min | 18,90 |
| d2 mm max | 9,54 |
| d1 mm max | 39,67 |
| L mm | 41,10 |
| g mm | 30,00 |
| S1 mm | 4,00 |
| S2 mm | 4,00 |
| FB kN | 88,70 |
| Waga | 4,83 |
