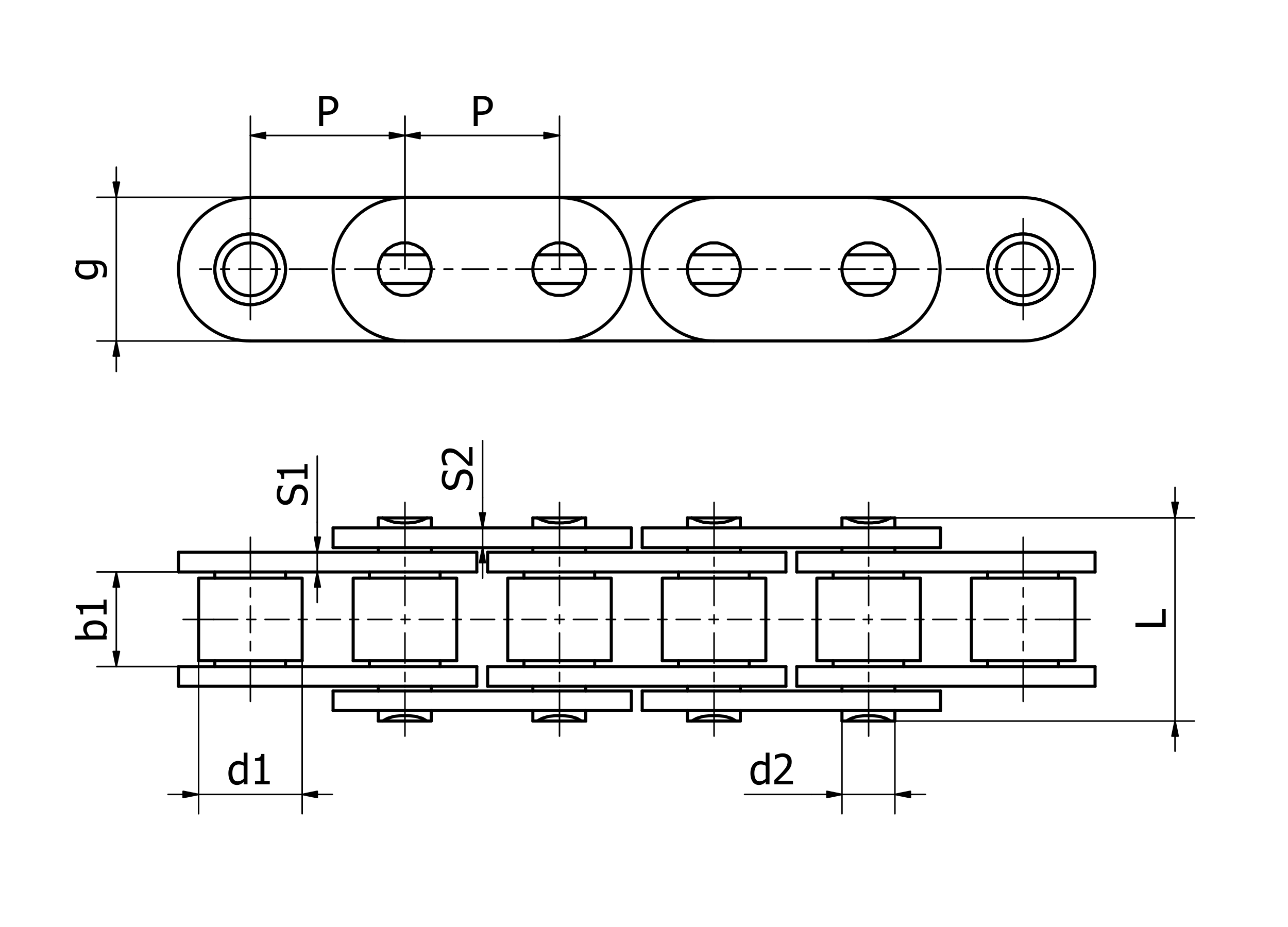

08B GL
Dane podstawowe
| DIN ISO | 08B GL |
|---|---|
| P mm | 12,70 |
| b1 mm min | 7,75 |
| d2 mm max | 4,45 |
| d1 mm max | 8,51 |
| L mm R1 | 17,00 |
| L mm R2 | 31,20 |
| L mm R3 | 45,10 |
| g mm | 11,80 |
| S1 mm | 1,60 |
| S2 mm | 1,60 |
| FB kN R1 | 18,00 |
| FB kN R2 | 32,00 |
| FB kN R3 | 47,50 |
| Waga R1 | 0,80 |
| Waga R2 | 1,45 |
| Waga R3 | 2,10 |
