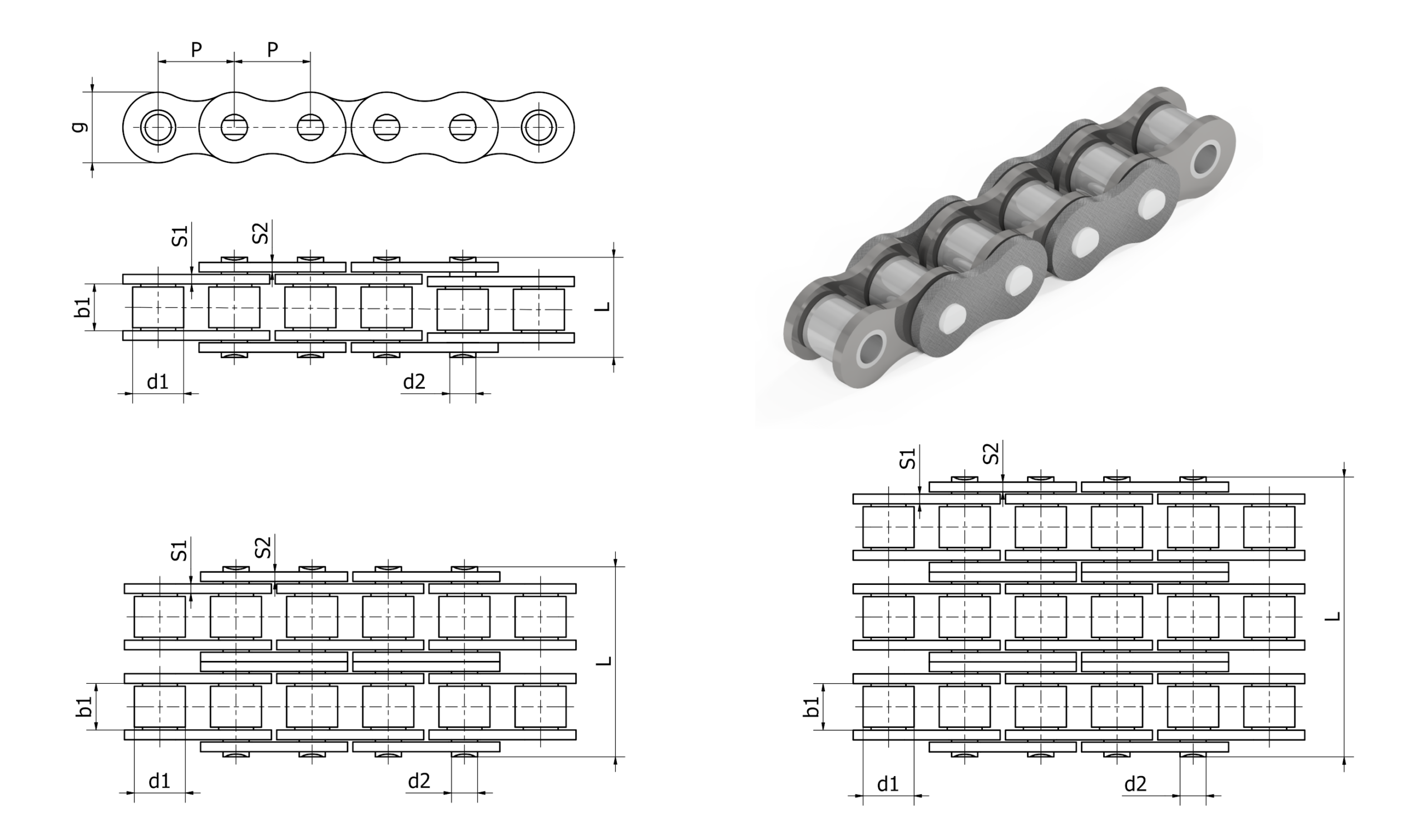

DIN
ISO		P
mm		b1
mm
min		d1
mm
max		d2
mm
max		L
mm
R1		L
mm
R2		L
mm
R3		g
mm		S1
mm		S2
mm		FB
kN
R1		FB
kN
R2		FB
kN
R3
03B5,002,503,201,496,80--4,100,600,602,20--
04B6,002,804,001,857,40--5,000,600,603,00--
05B8,003,005,002,318,6013,9019,507,100,800,805,007,8011,10
06B9,5255,726,353,2813,5023,4033,508,201,301,309,0016,9024,90
08B12,707,758,514,4517,0031,2045,1011,801,601,6018,0032,0047,50
10B15,8759,6510,165,0819,6036,1052,7014,701,601,6022,4044,5066,70
12B19,0511,6812,075,7222,7042,0061,5016,101,801,8029,0057,8086,70
16B25,4017,0215,888,2836,1068,0099,8021,004,003,0060,00106,00160,00
20B31,7519,5619,0510,1943,2077,80114,2026,404,503,5095,00170,00250,00
24B38,1025,4025,4014,6353,40101,70150,1033,206,004,80160,00280,00425,00
28B44,4530,9927,9415,9065,10124,60184,2036,707,506,00200,00360,00530,00
32B50,8030,9929,2117,8167,40124,60183,2042,007,006,00250,00450,00670,00
40B63,5038,1039,3722,8982,60154,50226,8052,908,508,00355,00630,00950,00
48B76,2045,7248,2629,2499,10190,40281,6063,8012,0010,00560,001000,001500,00
56B88,9053,3453,9834,32114,00221,00327,0077,8013,0012,00850,001600,002240,00
64B101,6060,9663,5039,40130,00249,00369,0090,1015,0013,001100,02000,03000,0
72B114,3068,5872,3944,50147,00283,00420,00103,6017,0015,001400,02500,03750,0
